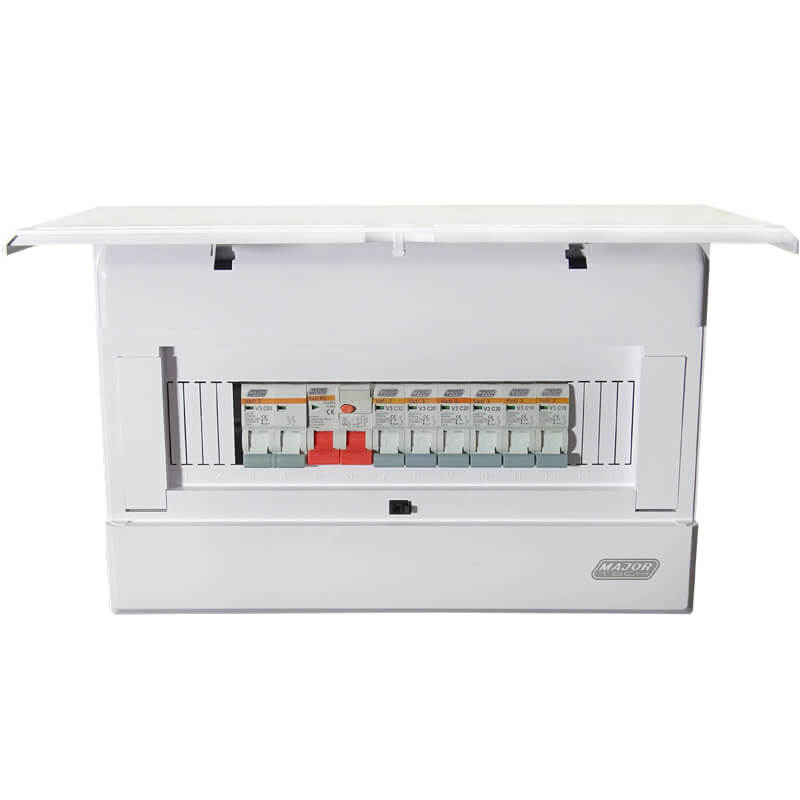

12 Way Distribution Board

R828.00R874.00

Features :

  • Available in Surface Mount and Flush Mount
  • Overall Dimensions : 323mm x 210mm x 97mm
  • Wall Box Size : 292mm x 192mm x 77mm (Flush Mount)
  • Heavy duty powder coated iron tray
  • Circuit labels included
  • Adjustable Din rail & front cover to ensure level installation
  • Tested and approved to EN60947-1
  • CE Certified
  • Din rail connection according to EN50022
  • Supplied with earth / neutral bar
  • 4 x 20mm knock outs, 2 x 30mm knock outs, 2 x 75mm (L) x 30mm(H) knock outs & 1 x 200mm(L) x 25mm(H) knock out
  • Flat elegant design
  • MCB’s are C Curve thermal magnetic
  • MCB’s are tested and approved to IEC60947-2+ VC8036+ SANS556-1
  • RCCB has been tested and approved to VC8035 + SANS 556-2-3 + IEC61008-1

Components :

  • 1 x V3C2P63 (63A 3Ka Double Pole MCB)
  • 1 x VE2P63 (63A Double Pole RCCB)
  • 1 x V3C1P32 (32A 3Ka Single Pole MCB)
  • 3 x V3C1P20 (20A 3kA Single Pole MCB)
  • 2 x V3C1P10 (10A 3kA Single Pole MCB)
  • Surface Mount Board: VBM1114SM (11-14 Surface Mount DB Board)
  • Flush Mount Board: VBM1114FL (11-14 Flush Mount DB Board)
Clear
SKU: VB12 Category:
