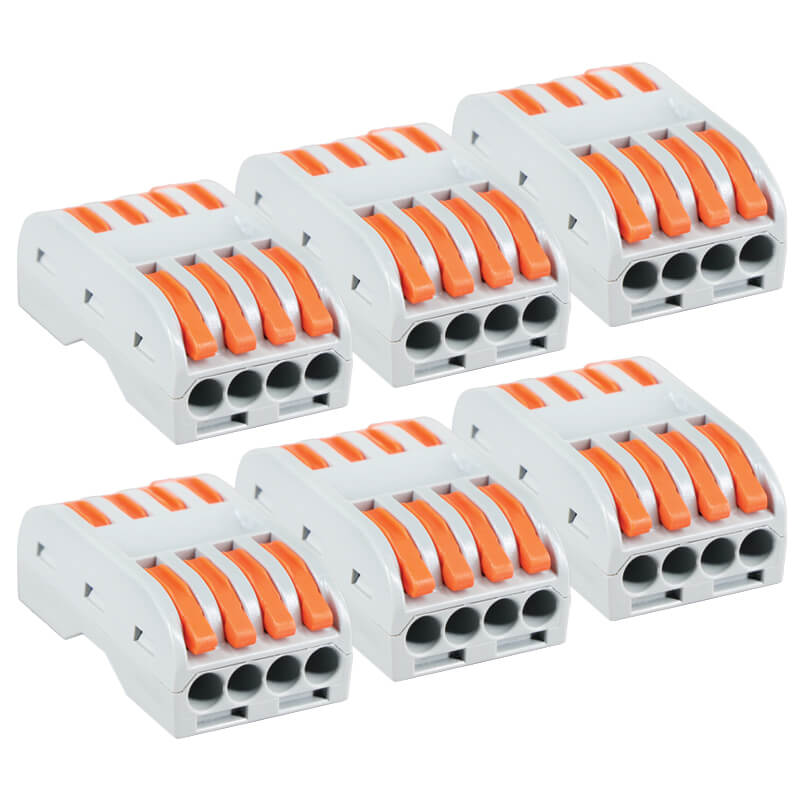

4-Pole Interjoining Connector Blocks

SKU: PCT-224

  • 4 Pole Interjoining Connector Block
  • ICE Standard Approved
  • 450V Rated Voltage
  • 32A Rated Current
  • 4kV Voltage Resistance

Quantity
From R 128.80 in. VAT From R 148.12 ex. VAT
Out of Stock
Contact Us

Details

The PCT-224 Interjoining Connector Block offers a quick and secure clamping solution, with the added benefit of an easy release when needed. Designed with a screwless connection, it helps reduce installation time for electricians and contractors. This 4 Pole connector is ICE Standard Approved, rated at 450V, supports up to 32A, and provides 4kV voltage resistance.

Specifications:

Function

Range

Application

Inline / Interjoining

Pole

4

Rated Current

32A

Rated Voltage

450V

Voltage Resistance

4kV

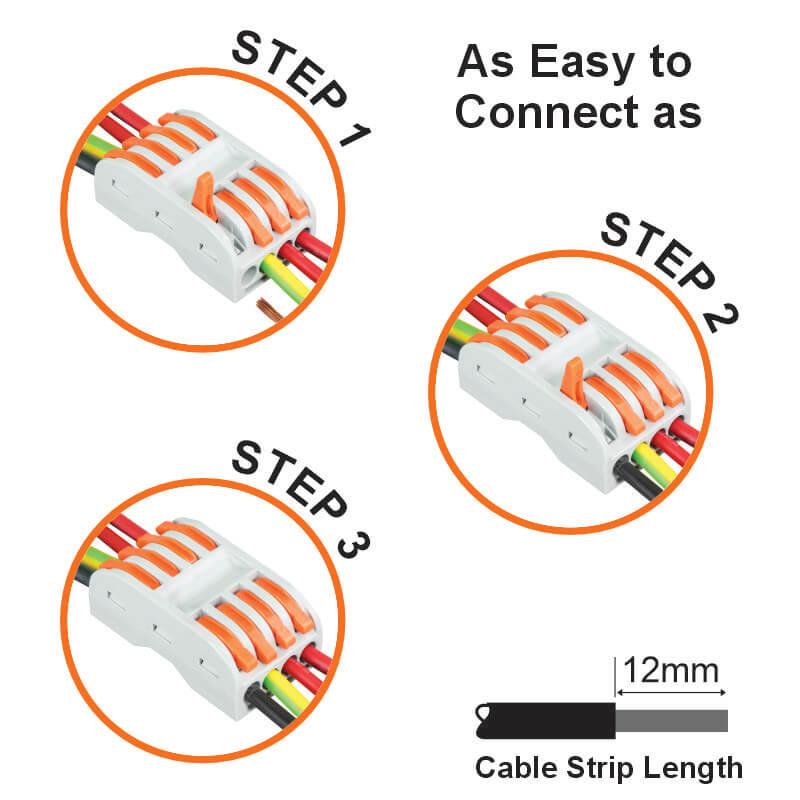

Strip Length

11mm to 12mm

Dimensions

23.10 x 39.30 x 14.30mm
